Some of AnatHomic Solutions are listed below. For more product details please contact us.

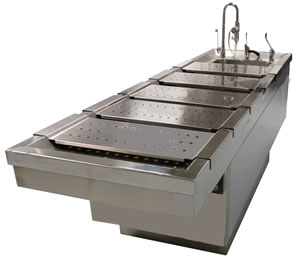

ME-101 AUTOPSY TABLE WITH LIFTING SYSTEM

  • Fully stainless steel construction.
  • Completely careened.
  • Sink 500x400x250 mm.
  • Double drainage system (worktop and sink).
  • Hot and hot mixer medical tap.
  • Hot and hot mixer medical shower.
  • Flexible silicon hose, 2.5m.
  • 4 Stainless steel body trays.
  • 1 Rubber headrest multi-position.
  • 2 Single phase watertight plugs.
  • Electro mechanic elevation system.
  • 1 Reversible hydro-aspirator with removable gastric probe.



Request Quote

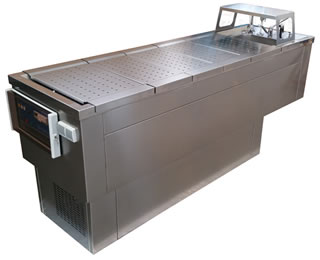

ME-101-AR AUTOPSY TABLE WITH VACUUM SYSTEM AND LIFTING

  • Fully built in stainless steel AISI -304
  • Sink  500x400x250mm
  • Double or drain. ( Working area and sink )
  • Taps or mono- control cold / hot , with clinical handle
  • Shower or mono- control cold / hot , with clinical handle
  • Flexo shower or silicone 2.5 m.
  • Ares fully perforated upper with removable supports bodies
  • 1 supports multi - positional heads rubber
  • 2 electric outlets watertight ,  monophasic
  • 1 hydro- vacuum
  • Water curtain or for permanent cleaning the work area.
  • electromechanical lifting mechanism , equipped with " PARALEX " system that completely eliminates longitudinal rolling , this allows work safety of the operator
  • Suction system
Request Quote

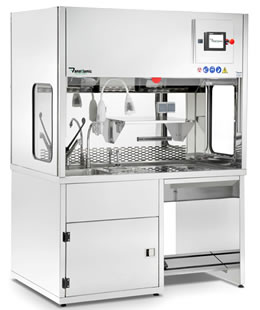

ET-107-1 NEW GROSSING STATION

The grossing stations ET-100 SERIES form a family of products characterized by their flexibility of adaptation to space and the versatility of configuration. Special attention has been paid to the conception of the work place, in order to make the tasks of the laboratory more comfortable and safe. This allows the user to execute their work more efficiently.

  • Manufactured entirely in stainless steel AISI-304, with sheet thickness between 1.5 and 2 mm.
  • Front safety glass screen, with guillotine electric system.
  • Sides with window.
  • Front, upper and lower aspiration.
  • Aspiration capacity: 2450 m3 / hour (depending on model).
  • Touch screen, for intuitive control of the station functions.
  • Aspiration system composed of electro-fans.
  • Filters of aluminum oxide with impregnation of potassium permanganate.
  • Alarm system to control the useful life of the filters.
  • Formalin automatic dispenser with pedal.
  • Alarm system for filling control of formaldehyde deposits.
  • General lighting by LED spotlights.
  • Adjustable halogen lighting of 15000 cd / 61000 lux at 1 m.
  • Integrated work surface, with perimeter flange to prevent spills.
  • Carving area with removable perforated trays, which guarantee the descending aspiration in the work area.
  • Washing sink accompanied by mono-control gerontological faucets C / F.
  • Shower with reinforced flexo.
  • Formalin dispenser tap.
  • Formalin collection sink (includes pre-filter and lid).
  • Integrated waste collection bucket.
  • Polyethylene cutting board.
  • Magnetic support for instruments.
  • Support shelf (one or several, depending on the model).
  • Auxiliary electrical outlets.
  • Adjustable footrest.



Request Quote

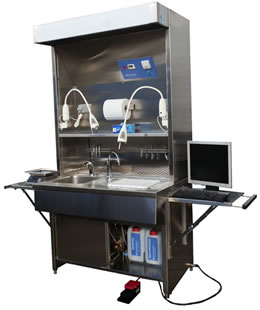

ET-101/1 GROSSING STATION/1 USER

  • Fully stainless steel construction
  • Absorption system maintaining a clean atmosphere in the workplace.
  • Dimensions: length 1300 mm, depth 850 mm, height 2100 mm.
  • Made-up of: front panel, working surface, suction system and bottom panel.

FRONT PANEL

  • General lighting system.
  • 2 adjustable arms with halogen white light bulbs.
  • Network switches, lighting and fans.
  • Hour meter for filters.
  • Alarm system for warning of spent filters.
  • 2 sockets.
  • Magnetic board for cutting tools.
  • Paper dispenser.
  • Metal millimetre-rule (optional)
  • Support arm for printer (optional)
  • Shelve for computer and screen (optional)
  • Support for camera (optional)
  • Support for video camera (optional)

WORKING SURFACE

  • Divided into two parts.
  • 1 working area 600 x 500 mm
  • 1 sink 400 x 400 x 250 mm.
  • Fully automated formaldehyde dispenser, with used formaldehyde collection tank, with tanks filling / emptying sensors.
  • 1 cold / hot mono-control faucet with clinical handle.
  • Thermostatic mixer with presence detector (optional).
  • Independent sink for formalin 120 x 120 mm
  • Formalin dispenser faucet.
  • Working area with removable perforated cover. Below this working area are the suction system and the general drainage system.
  • Carving board 300 x 400 mm
  • OLYMPUS Dictaphone with pedal and microphone (OPTIONAL)

BOTTOM PANEL

  • Swing doors for its easy cleaning.
  • Formaldehyde automatic dosing system, by pedal.
  • Residual formaldehyde container with level detector alarm (capacity up to 10 liters).



Request Quote

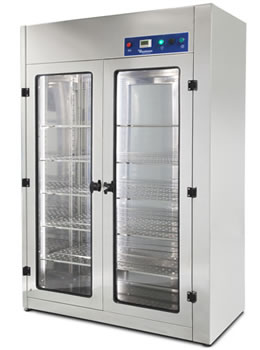

VENTILATED CABINETS

The CABINETS of SERIES AV-017 are designed in compliance with the current regulations regarding safety at work.
In the case of cabinets with ascending aspiration, the operation is based on an air circulation system generated by a compact suction unit located in the upper area of the cabinet.

  • Structure made entirely of AISI-304 stainless steel (sheet thickness of 1.2 - 1.5 mm).
  • Measures: 800/1000/1100/1250/1500 x 600 x 2000 (H) mm.
  • Possibility of customized fabrications.
  • 2 watertight doors, swing 180ยบ.
  • Lock with key.
  • 5 perforated shelves, removable and adjustable in height.
  • Electric control panel.
  • Filter usage hours control system.
  • Aluminum oxide filter impregnated with potassium permanganate.
  • Acoustic and luminous alarms to indicate the filter change.
  • Filter lifetime: 800 hours.
  • 2 lateral extraction outputs with flow regulator.
  • Compact and silent suction system.
  • Upper anti-return valve.
  • LED lighting.
  • 2 removable lower trays for the collection of possible spills.
  • Adjustable feet for correct leveling.
  • Magnetic door opening / closing switch.
Request Quote

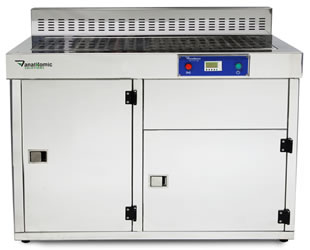

SPECIMEN RECEIVING WORK STATION

The new series of aspirated tables for the reception of specimen have been developed to meet the strictest occupational safety standards. In addition to a powerful suction system, the new MRM-100 series are equipped with specific filters to neutralize formaldehyde (POTASSIC PERMANGANATE) and a special system for the collection of possible accidental spills.
Models with aspirated storage drawers included in the table itself.
Completely manufactures in stainless steel and with the possibility of different configurations and the option of CUSTOM OUTFITTING.



Request Quote
